Executive Briefing
- Traditional heuristic OCR and template-matching algorithms fail under extreme environmental variables such as glare, motion blur, and non-standard plate geometries.
- Modern edge architectures utilize decoupled YOLOv8/v9 object detection pipelines paired with transformer-based sequence recognition models.
- Enterprise deployments demand sub-50ms inference times at the edge to support high-velocity highway tolling and secure automated parking infrastructure.
The Paradigm Shift from Heuristics to Deep Learning in ANPR
Automatic Number Plate Recognition (ANPR) has undergone a radical architectural evolution over the past decade. Legacy systems relied heavily on handcrafted feature engineering, Sobel edge detectors, and morphological thresholding. While adequate for controlled access gates with static lighting, these traditional pipelines degrade rapidly when deployed in complex real-world environments. Factors like variable illumination, severe oblique angles, accumulated road grime, and international character variations routinely cripple standard optical pipelines, resulting in unacceptable miss rates and manual audit overhead.
Today, enterprise-grade ANPR demands end-to-end deep learning pipelines capable of handling high-velocity motion vectors and adverse weather conditions. By decoupling the vision architecture into specialized phases – specifically, vehicle bounding box detection, precise plate localization, geometric rectification, and sequence recognition – modern neural networks achieve unprecedented character accuracy rates exceeding 99.4%.
Deconstructing the Modern ANPR Neural Pipeline
An enterprise computer vision framework for license plate recognition requires careful synchronization of multiple deep learning models running concurrently, often directly on edge hardware accelerators.
1. Vehicle Detection and Region of Interest (ROI) Isolation
The initial stage utilizes optimized Single-Shot Detectors (SSDs) or YOLO-family models (such as YOLOv8 or YOLOv9) tuned for high frame-rate inference. Rather than scanning the entire high-resolution video stream for license plates directly, the network first isolates the vehicle chassis. This minimizes false-positive triggers from background text, billboards, and signage, drastically optimizing computational throughput.
2. Precise Plate Localization and Spatial Rectification

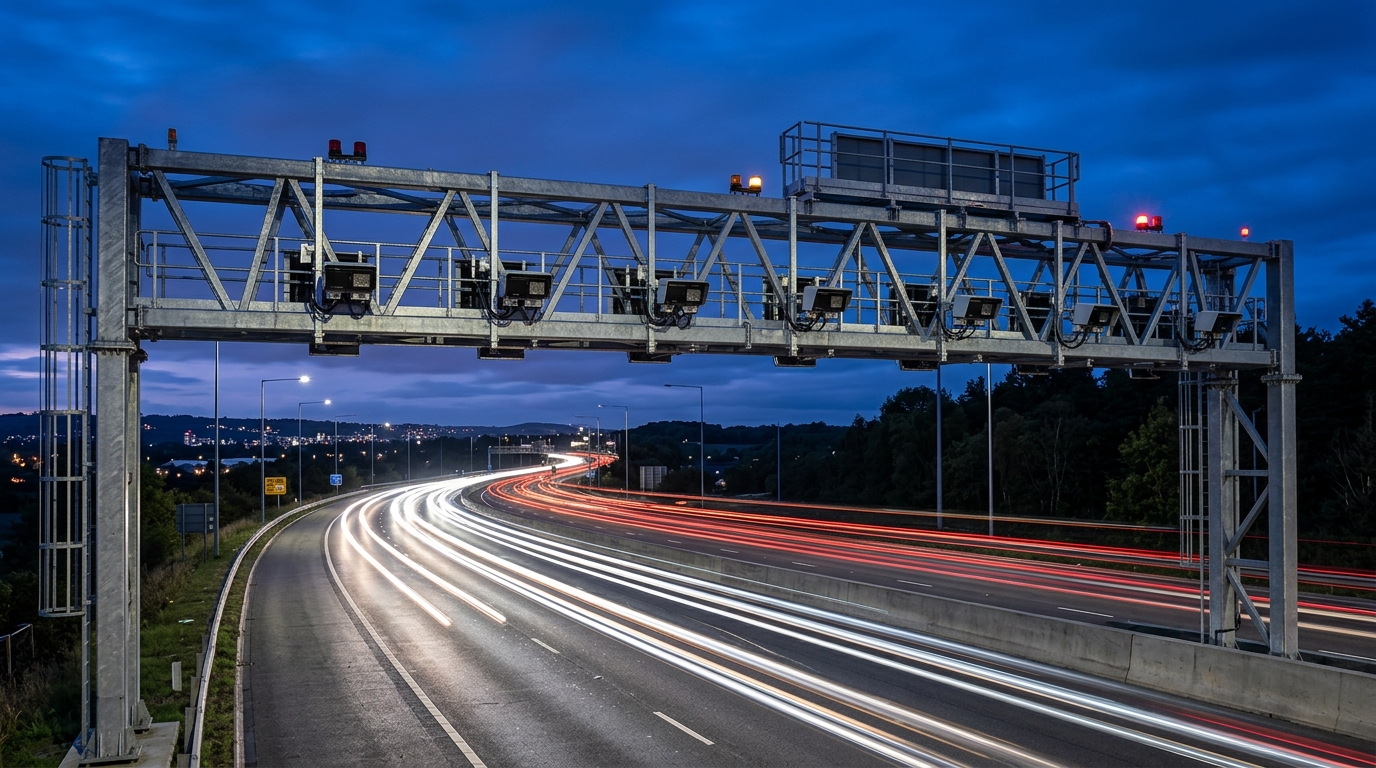

Once the vehicle ROI is established, a secondary high-resolution regression network locates the precise bounding coordinates of the license plate. Because plates captured by highway gantries or security cameras are frequently distorted by perspective projection, spatial transformer networks (STNs) apply affine transformations in real time. This rectifies skewed, angled, or rotated plates into a normalized, flat rectangular coordinate space before character parsing occurs.
3. Transformer-Based Character Recognition
The final step processes the rectified plate image through a Connectionist Temporal Classification (CTC) network or an attention-based sequence-to-sequence transformer model. Instead of segmenting individual characters – a notoriously error-prone process when characters touch or overlap – these models evaluate the entire character string holistically, outputting probabilistic character sequences with high confidence intervals.
ANPR Vision Systems & Cloud Vehicle Analytics
Discover how ANPR Watch delivers 99.4% optical character accuracy for automated parking enforcement, highway tolling, and security checkpoints.
Architectural Performance Matrix: Legacy vs. Deep Learning ANPR
Evaluating the operational trade-offs between legacy computer vision techniques and modern deep-learning-driven optical recognition clarifies why enterprise architects are rapidly modernizing their infrastructure:
| Metric / Capability | Legacy Heuristic OCR | Modern Deep Learning ANPR |
|---|---|---|
| Accuracy Under Glare/Night | Low (Frequent read failures) | Extremely High (Resilient CNN filters) |
| Processing Latency | 120ms – 250ms per frame | Sub-35ms via Edge TPU/GPU |
| Oblique Angle Tolerance | < 15 degrees | Up to 45 degrees (via STN rectification) |
| Maintenance Overhead | High (Manual tuning required) | Low (Continuous automated retraining) |
Enterprise Implementation Checklist
- Optical Hardware Selection: Deploy global shutter sensors with hardware-controlled IR strobes to completely eliminate motion blur at velocities exceeding 120 km/h.
- Edge vs. Cloud Topology: Implement real-time plate recognition at the camera edge using embedded NPUs to minimize backhaul bandwidth, transmitting only metadata and cropped thumbnails to central cloud storage.
- Dataset Diversity: Ensure training pipelines incorporate synthetic data generation to account for regional font variations, dirty plates, and custom vanity designs.
- Latency Optimization: Utilize TensorRT or ONNX Runtime quantization (INT8) to maximize inference frames per second on hardware accelerators without sacrificing optical precision.
Enterprise FAQ
How do deep learning ANPR systems handle severely dirty or damaged plates?
Modern transformer and convolutional models leverage contextual language models and historical pattern matching. If one or two characters are obscured by mud or damage, the recognition engine computes the highest probability string based on regional syntax rules and database matching constraints.
What are the hardware requirements for real-time edge ANPR processing?
Effective edge processing requires dedicated neural processing units (NPUs) or embedded GPUs capable of at least 15 to 30 TOPS (Tera Operations Per Second) to run vehicle detection, plate localization, and character recognition concurrently at 30+ frames per second.
How is data privacy maintained in high-surveillance ANPR deployments?
Enterprise systems incorporate automated masking routines that redact facial imagery of drivers and passengers at the sensor level, ensuring compliance with GDPR, CCPA, and regional data protection regulations while retaining strictly necessary vehicle metadata.
